Type of Buttweld Fittings

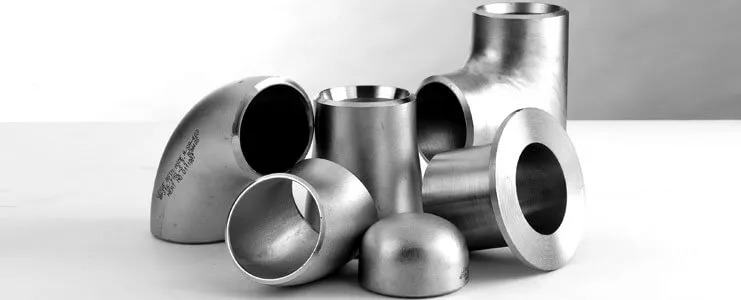

Buttweld Fittings

When it comes to plumbing and piping systems, you’ve probably heard terms like buttweld fittings. But if you’re new to the topic, you might be wondering, what is a buttweld fitting? Simply put, buttweld fittings are components used to connect or alter sections of pipes in industrial and commercial setups. These fittings are welded directly onto the pipe, forming a strong, leak-proof connection. Unlike other types of fittings like threaded or socket-weld fittings, buttweld fittings provide durability, high performance, and long-term reliability.

What Are Buttweld Fittings Used For?

Before we jump into the various types, it’s worth understanding where these fittings play a role. Buttweld fittings are primarily used in industries like oil and gas, power generation, petrochemicals, food processing, and even shipbuilding. They help in changing the direction of the pipe, altering pipe sizes, or branching out a pipeline system. Their welded connection offers several key advantages, such as improved flow inside the pipe, reduced pressure drop, and resistance to structural strain. It’s no wonder these fittings are preferred for high-pressure and high-temperature systems.

Types of Buttweld Fittings

1. Elbows

Elbows are one of the most commonly used types of buttweld fittings. They are designed to change the direction of a pipe, often at angles of 45 degrees, 90 degrees, or even 180 degrees. Here are the two main categories of elbows:

  • Short Radius Elbows (SR): These have a tighter curve and are typically used in compact spaces.
  • Long Radius Elbows (LR): These have a more gradual curve and are ideal for applications requiring smoother flow.

2. Reducers

Reducers are used to connect two pipes of different diameters. They ensure a smooth transition between pipes, helping maintain consistent flow rates. Reducers also minimize turbulence and pressure loss in the system. There are two main types:

  • Concentric Reducers: Used when the centerline of the pipes remains aligned.
  • Eccentric Reducers: Designed for instances where one side of the pipe remains flat for drainage or other specific requirements.

3. Tees

Tees are T-shaped fittings designed for branching out a pipeline system into two separate paths. They come in two forms:

  • Equal Tees: The diameter of all three openings is the same, allowing equal flow distribution.
  • Reducing Tees: One of the three openings is of a smaller diameter, which helps divide or direct flow into smaller pipe segments.

4. Caps

Pipe caps are used to close the ends of a pipeline. Their primary role is to stop the flow or seal the pipeline while maintaining pressure. Caps are typically welded at the end of a pipe to prevent leakage or contamination.

5. Crosses

A cross fitting has four openings, essentially creating a junction in the pipeline. They’re less common compared to elbows and tees but are useful in systems that require multi-directional flow.

6. Stub Ends

Stub ends work in conjunction with Lap Joint flanges. They’re used when frequent dismantling of the piping system is necessary. This makes them a popular choice for low-pressure and non-critical systems where easy assembly and maintenance are key.

7. Couplings

Buttweld couplings are small fittings used to connect two sections of pipes or tubes. These are essential components when extending pipe lengths or repairing damaged sections.

8. Bends

Bends are similar to elbows but typically offer a smoother, more gradual change of direction. They’re custom-made and widely used in industries requiring long-radius, low-resistance directional changes.

Advantages of Buttweld Fittings

Now that we’ve covered the various types, you may be wondering why Buttweld Fittings are so popular. Here are some of the biggest advantages:

  • Strong and Durable: The welded connection reduces the risk of leakage and enhances the system’s overall strength.
  • Improved Flow Characteristics: Since the fitting is directly welded to the pipe, there are no abrupt edges or obstructions inside the pipeline, ensuring smoother flow.
  • Wide Range of Materials: Buttweld fittings are available in materials such as stainless steel, carbon steel, and even alloys, offering flexibility depending on the application.
  • Cost-Effective: While the initial cost of buttweld fittings might be slightly higher, their long-term performance and reduced maintenance needs often make them the more economical choice.
  • Versatility: From small-scale plumbing systems to heavy-duty industrial pipelines, buttweld fittings can handle a wide range of pressures, temperatures, and conditions.

Final Thoughts

What is a buttweld fitting? It’s far more than just a connector for pipes; it’s a critical component that ensures the smooth, reliable functioning of a piping system. Knowing the different types and how they are used can help you choose the right option for your needs. From elbows and reducers to more specialized fittings like crosses and stub ends, there’s a buttweld fitting for every application.
