Carbon Steel A105 / A105N Forged Fittings

ASTM A105 Carbon Steel High Pressure Forged Fittings, SA A105N Carbon Steel Forged Fittings, ASTM A105 Forged Fittings, Carbon Steel Forged Fittings, Carbon Steel ASTM A105N Cross, Carbon Steel Equal Tee, BS 3799 Union, Forged 90 Deg Screwed Threaded Elbow, Carbon Steel Full Couplings, Manufacturer Of ASTM A105N Bushing in Mumbai, India.

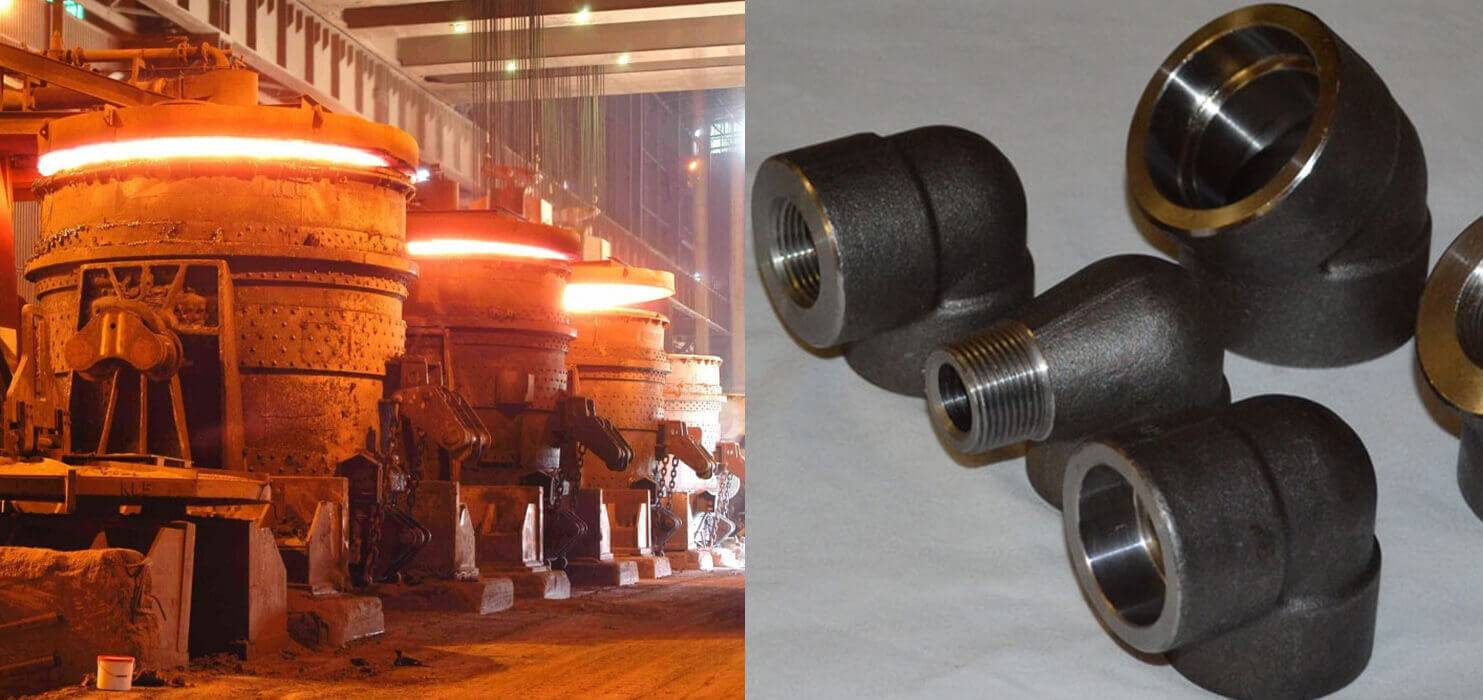

Carbon Steel ASTM A105 / A105N Forged Fittings

What are Carbon Steel A105 Forged Fittings?

Carbon steel A105 forged fittings are a type of fitting that is used in plumbing and water supply systems. Carbon Steel A105 Forged Fittings are typically used in residential and commercial applications.

What are Carbon Steel A105N Forged Fittings?
Carbon Steel A105N Forged Fittings are designed to withstand high pressures and temperatures in the oil and gas industry. CS A105N Forged FIttings can be used in any situation where high-pressure steam or hot water needs to be transferred from one pipe to another, such as in power plants, refineries, chemical plants, paper mills and textile mills. As an ISO certified company, we stand by the principles of quality, safety, and precision in all our products. We are manufacturers, suppliers and exporters of Carbon Steel A105 / A105N Forged Fittings, which are forged Carbon Steel piping solutions to be used with pressure systems working at higher as well as ambient temperatures. Our Carbon Steel A105 Screwed Threaded Pipe Reducers are low Carbon, Manganese and Silicon added fittings which are usable for non-critical yet pressure applications, like refrigeration fittings, that work at constant temperatures. They offer maximum machinability and weldability as they are low-carbon reducers.

Carbon Steel A105 Forged Fittings, Global Supplier of Carbon Steel A105N Socket weld Fittings, Stockist of Carbon Steel Forged Elbow, Carbon Steel Threaded Fittings Dealer in India, A105 Forged Pipe Fittings, Carbon Steel ASTM A105N Forged Pipe Fittings, ASTM A105N Unequal Tee, CS ASTM A105N Forged Plug, ASME 16.11, MSS SP-79, 83, 95, 97 Forged Pipe Fittings.

We provide Carbon Steel A105N Forged Pipe Elbow and LTCS A350 LF2 Forged Fittings, which are 'normalized', heat treated fittings, devoid of any internal stresses and thus having superior characteristics. Thereby, our Carbon Steel A105N Forged Tees and CS A694 Forged Fittings have a uniform grain structure and are used for pressure piping in the steam and power systems. Also, We offer a wide range of Carbon Steel ASTM A105 Forged Fittings such as Carbon Steel A105N Forged Elbow, A105 Carbon Steel Equal Tee, ASTM A105 Carbon Steel Coupling, Carbon Steel Pipe Cap, Carbon Steel Union, Carbon Steel ASTM A105N Bushing, Carbon Steel Plug, Carbon Steel A105 Pipe Nipple, Carbon Steel A105N Street Elbow.

Carbon Steel Forged Steel Fittings, Carbon Steel Socket Weld Cap, ASTM A105 Carbon Steel Forged Fittings, Best Price of Carbon Steel 3000 LB Forged Screwed Fittings Exporter, Carbon Steel Street Elbow, Stockholder Of Carbon Steel A105 Threaded Plug, ASTM A105 Fittings, Carbon Steel A105 Forged Fittings, ASME SA105N Carbon Steel Class 6000 Fittings Wholesaler, Carbon Steel Pipe Nipple Traders in India.

What is CS A105 Forged Fittings?

CS A105 Forged Fittings are pipe fittings made from carbon steel grade A105 through the forging process. These fittings are known for their excellent strength, high durability, and corrosion resistance. Carbon Steel A105 Forged Fittings find extensive use in industries such as oil and gas, chemical processing, and power generation, where a reliable and robust connection is required.

What is Carbon Steel A105 Forged Fittings used for?

Carbon Steel A105 Forged Fittings connect pipes or components in piping systems that transport fluids or gases. They provide a secure and leak-free connection, ensuring the system's integrity. These fittings are commonly used in applications involving high pressure, high temperature, and corrosive environments. They find applications in pipelines, refineries, petrochemical plants & other industrial settings.

What are the advantages of the SA A105N CS Forged Fittings?

The advantages of SA A105N CS Forged Fittings include their exceptional strength and durability, allowing them to withstand high pressures and temperatures. They exhibit excellent corrosion resistance, making them suitable for corrosive environments. SA A105N CS Forged Fittings also provides ease of installation, maintenance, and disassembly, offering flexibility and convenience during piping system operations. Also, their dimensional accuracy and reliable performance contribute to the overall efficiency and longevity of the piping system.

Standard Specification For Carbon Steel ASTM A105 Forged Pipe Fittings


Specifications : ASTM A105 & ASME SA105, A105N

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/8" NB to 4" NB

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings


ASTM A105 Carbon Steel Forged Fitting Chemical Composition

Element Composition %, Note C
Carbon .35 max
Manganese .60-1.05
Phosphorus .035 max
Sulfur .040 max
Silicon .10-35
Copper .40 max, note A
Nickel .40 max, note A
Chromium .30 max, note A,B
Molybdenum .12 max, note A,B
Vanadium .08 max, note A
Note A – The sum of copper, nickel, chromium, molybdenum and vanadium shall not exceed 1.00%
Note B – The sum of chromium and molybdenum shall not exceed .32%
Note C – for each reduction of 0.01% below the specified carbon maximum (.35%), an increase of .06% manganese above the specified maximum (1.05%) will be permitted up to a maximum of 1.65%

ASTM A105 Carbon Steel Forged Fitting Mechanical properties

Tensile 70 ksi, min
Yield, note A 36 ksi, min
Elongation in 2in, Basic minimum for wall 5/16″ and over, strip test 30%
Hardness 187 HBW max
Note A – Determined by either the 0.2% offset method or the 0.5% extension-under-load method. Other test methods available as listed in A105.

ASTM A105 Fittings Price List in India

S. NO. ITEM QTY Pricing (U.S.D $) Per Pice
1 ELBOW 90° 3000# ROSC A105 1" 1500 $2.3
2 ELBOW 90° 3000# ROSC A105 11/4" 1500 $2.9
3 ELBOW 45° 3000# ROSC A105 1" 1500 $2.3
4 ELBOW 45° 3000# ROSC A105 11/4" 1500 $2.9
5 TEE 3000# ROSC A105 1/2" 1500 $1.3
6 COUPLING 3000# ROSC A105 1" 1500 $0.9
7 HALF COUPLING 3000# ROSC A105 1/2" 1500 $0.4
8 T CAP 3000# ROSC A105 3/4" 1500 $0.65
9 T MALE W/SQ 3000/6000# ROSC 1/2" 1500 $1.95
10 RED BUSH 3000# ROSC 11/4" X 3/4" 1500 $1.4
11 RED BUSH 3000/6000# ROSC 11/4" X 1" 1500 $1.4

ASTM A105 Forged Fittings Tolerance Chart

Dimensions Up to 2" NB 2 1/2" & 3" NB
• Socket Bore + 0.25 + 0.38
- 0.00 - 0.00
• Body Bore + 0.00 + 0.00
- 1.52 - 3.00
A 1/4" NB ± 0.8 ± 2.50
3/8" TO 3/4" NB ± 1.6
1"T0 2"NB ± 2.0

ASTM A105 Carbon Steel Forged Fittings

Threaded and Socket Weld Pipe Fittings

Products Size
ASTM A105 Carbon Steel 90° Elbows ASTM A105 Carbon Steel 45° Elbows Sizes 1/8″– 4″
Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
ASTM A105 Carbon Steel Forged Caps ASTM A105 Carbon Steel Couplings
ASTM A105 Carbon Steel Forged Tees ASTM A105 Carbon Steel Unions
ASTM A105 Carbon Steel Forged Cross ASTM A105 Carbon Steel Inserts
ASTM A105 Carbon Steel Forged Plug ASTM A105 Carbon Steel Street Elbows
ASTM A105 Carbon Steel Bushings ASTM A105 Carbon Steel Pipe Nipple

Carbon Steel Forged Fittings Manufacturing Standards :

ASTM A105 - ASME SA105 Standard Specification for Wrought Austenitic Carbon Steel Piping Fittings
ASME B16.11 Socket Welding and Threaded Forged Fittings
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 Swage(d) Nipples and Bull Plugs
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Types Of Carbon Steel Forged Fittings



ASTM A105 / A105N Carbon Steel Forged Fittings Available Types

Carbon Steel Forged Pipe Fittings Carbon Steel High Pressure Forged Fittings
Carbon Steel A105 Socket Weld Fittings Carbon Steel ASTM A105 Threaded Fittings
Carbon Steel A105N Socket Weld 90 Deg Elbow Carbon Steel Threaded 90 Deg Elbow
Carbon Steel Socket Weld 45 Degree Elbow Suppliers ANSI Carbon Steel Screwed 45 Degree Elbow
Carbon Steel A105N Forged Tee Dealer Carbon Steel Threaded Tee Exporter
Carbon Steel Socket Weld Cross Stockholder Steel A105N Threaded / Screwed Cross Distributors
Carbon Steel A105 Socket Weld Half Coupling Carbon Steel Threaded Half Coupling Manufacturer
Carbon Steel ASTM A105 Full Coupling Carbon Steel Coupling
Carbon Steel Carbon Steel Socket Weld Cap Carbon Steel A105 Screwed Cap
ANSI B16.11 Carbon Steel Socket Weld Union Carbon Steel Threaded / Screwed Union Stockist
ASTM A105 Carbon Steel Screwed Hex Plug ASME SA105 Carbon Steel Square Plug
ASTM A105 Pipe Fittings Carbon Steel ASTM A105 Fittings Manufacturers
Carbon Steel Reducing Tee ASTM A105 Carbon Steel Threaded / Screwed Bushing
A105 Carbon Steel Hex Nipples ASME SA105N Carbon Steel Swage Nipple
Steel A105 Threaded Street Elbow Carbon Steel Threaded / Screwed Pipe Nipple
Carbon Steel Socket weld Unequal Tee Carbon Steel ASME B16.11 Threaded Unequal Tee

Carbon Steel Socket weld / Threaded Forged Fittings Application

ASTM A105 Forged Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A105 Carbon Steel Forged Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM A105 Carbon Forged Fittings is use in various industries like :

  • Carbon Steel Forged Fittings uses in Oil and Gas Pipeline
  • ASTM A105 Carbon Steel Socket weld Fittings uses in Chemical Industry
  • A105N Carbon Steel Forged Fittings uses in Plumbing
  • Carbon Steel ASTM A105 Threaded Fittings uses in Heating
  • ASTM A105 Forged Fittings uses in Water Supply Systems
  • ASTM A105 Carbon Steel High Pressure Fittings uses in Power Plant
  • Carbon Steel Forged Fittings uses in Paper & Pulp Industry
  • Carbon Steel Forged Pipe Fittings uses in General Purpose Applications
  • ASME SA105 Carbon Steel High Pressure Fittings uses in Fabrication Industry
  • Carbon Steel Forged Fittings uses in Food Processing Industry
  • ANSI Carbon Steel Forged Fittings uses in Structural Pipe
